ROHM Semiconductor RFx30TZ6S & RFx60TZ6S Ultra Fast Recovery Diodes
ROHM Semiconductor RFx30TZ6S and RFx60TZ6S Ultra Fast Recovery Diodes are silicon epitaxial planar diodes offering a peak reverse voltage of 650V and a rectified forward current range from 30A to 60A. These devices feature fast recovery, ultra-low switching loss, and a high current overload capacity.
The ROHM Semiconductor RFx30TZ6S and RFx60TZ6S Ultra Fast Recovery Diodes are offered in an industry-standard TO-247-2L package with a 175℃ maximum junction temperature.
Features
- Silicon epitaxial planar structure
- 650V reverse voltage
- 30A to 60A rectified forward current range
- Ultra-fast recovery
- Ultra-soft recovery type
- Ultra-low switching loss
- High current overload capacity
- TO-247-2L package
Applications
- General rectification
- PFC power supplies

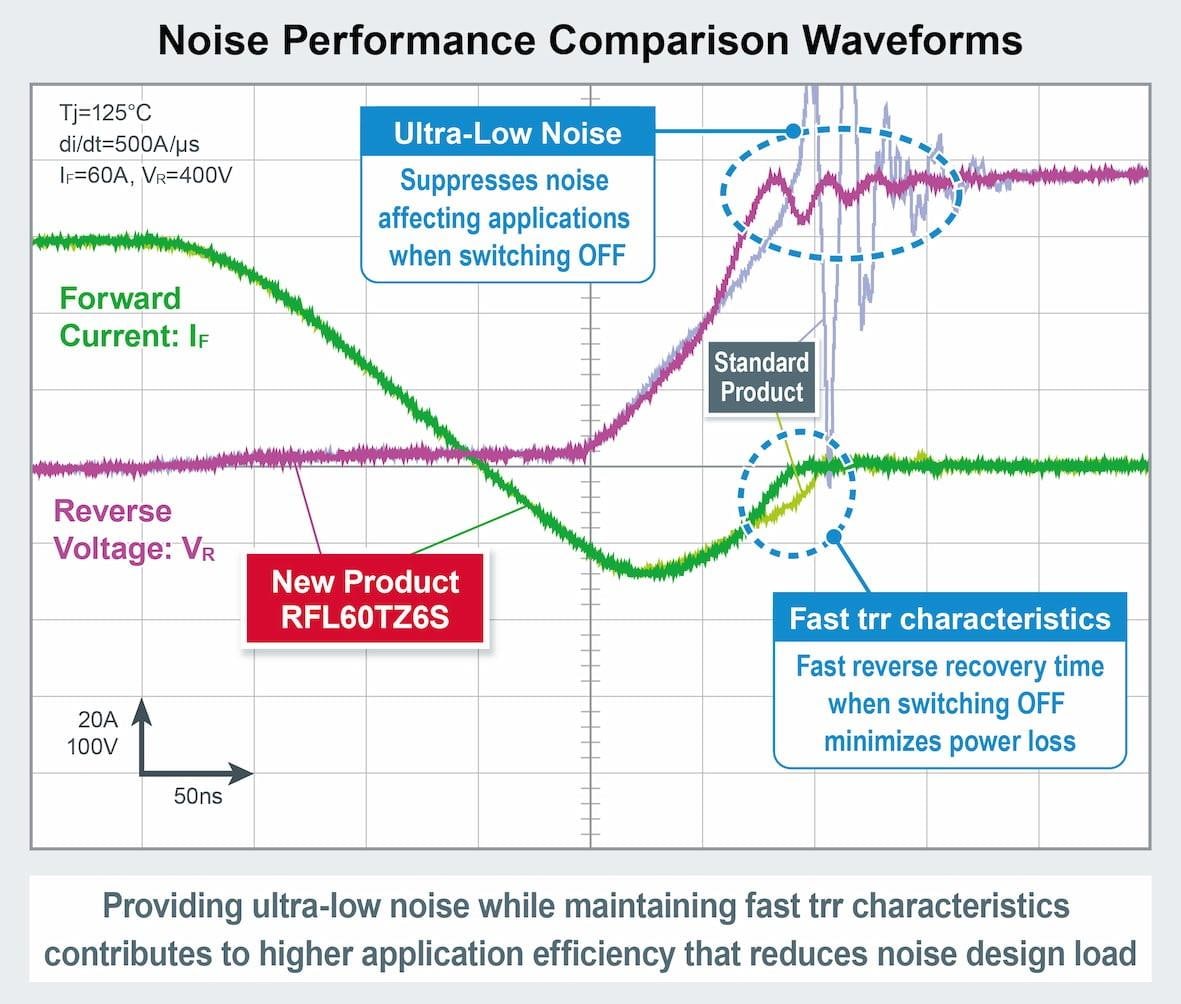

Noise Performance Comparison Waveforms

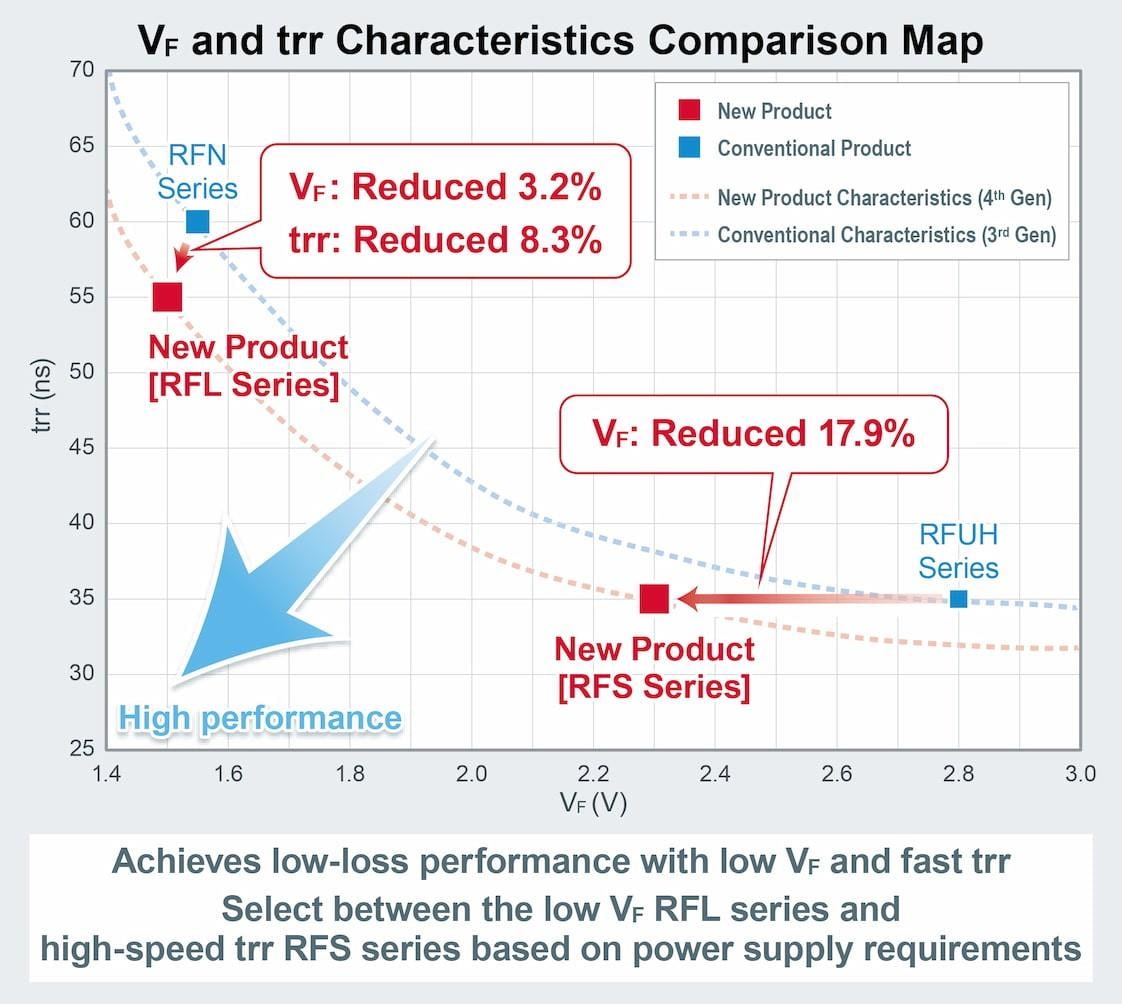

VF & trr Characteristics Comparison Map

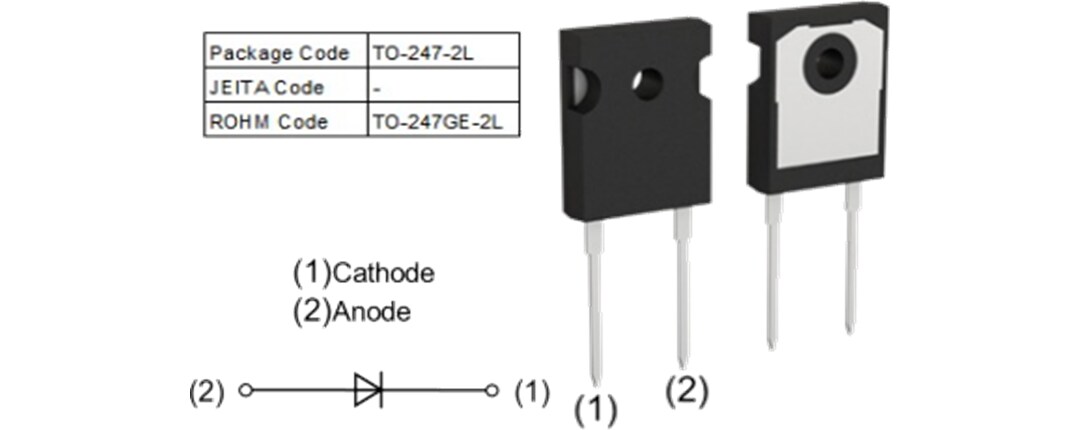

Pin Designations

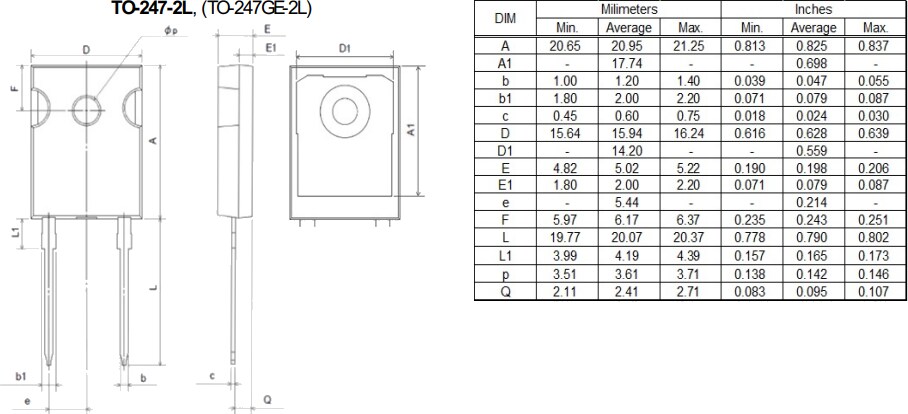

Package Outline
