Texas Instruments ADS422x / ADS424x Dual Ultra Low-Power ADCs
Texas Instruments ADS422x and ADS424x Dual-Channel Analog-to-Digital Converters are low-speed variants of the ADS42xx ultra-low power family of ADCs. The 12-bit TI ADS422x and 14-bit TI ADS424x devices use innovative design techniques to achieve high-dynamic performance while consuming extremely low power with a 1.8V supply. This topology makes TI ADS422x and ADS424x Dual-Channel ADCs ideal for multi-carrier, wide-bandwidth communications applications.
Features
- 250MSPS maximum sample rate
- Ultra-low power with single 1.8V supply
- 560mW total power at 250MSPS
- High dynamic performance
- 80dBc SFDR at 170MHz
- 71.7dBFS SNR at 170MHz
- 90dB at 185MHz crosstalk
- Programmable gain up to 6dB for SNR/SFDR trade-off
- DC offset correction
- Output interface options
- 1.8V parallel CMOS interface
- Double data rate (DDR) LVDS with programmable swing
- 350mV standard swing
- 200mV low swing
- Supports low input clock amplitude down to 200mVPP
- 9mm×9mm, 64-pin quad flat no-lead (QFN) package
Applications
- Wireless communications infrastructure
- Software defined radio
- Power amplifier linearization

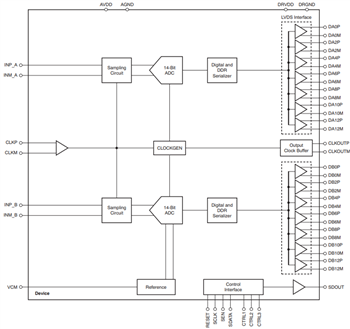

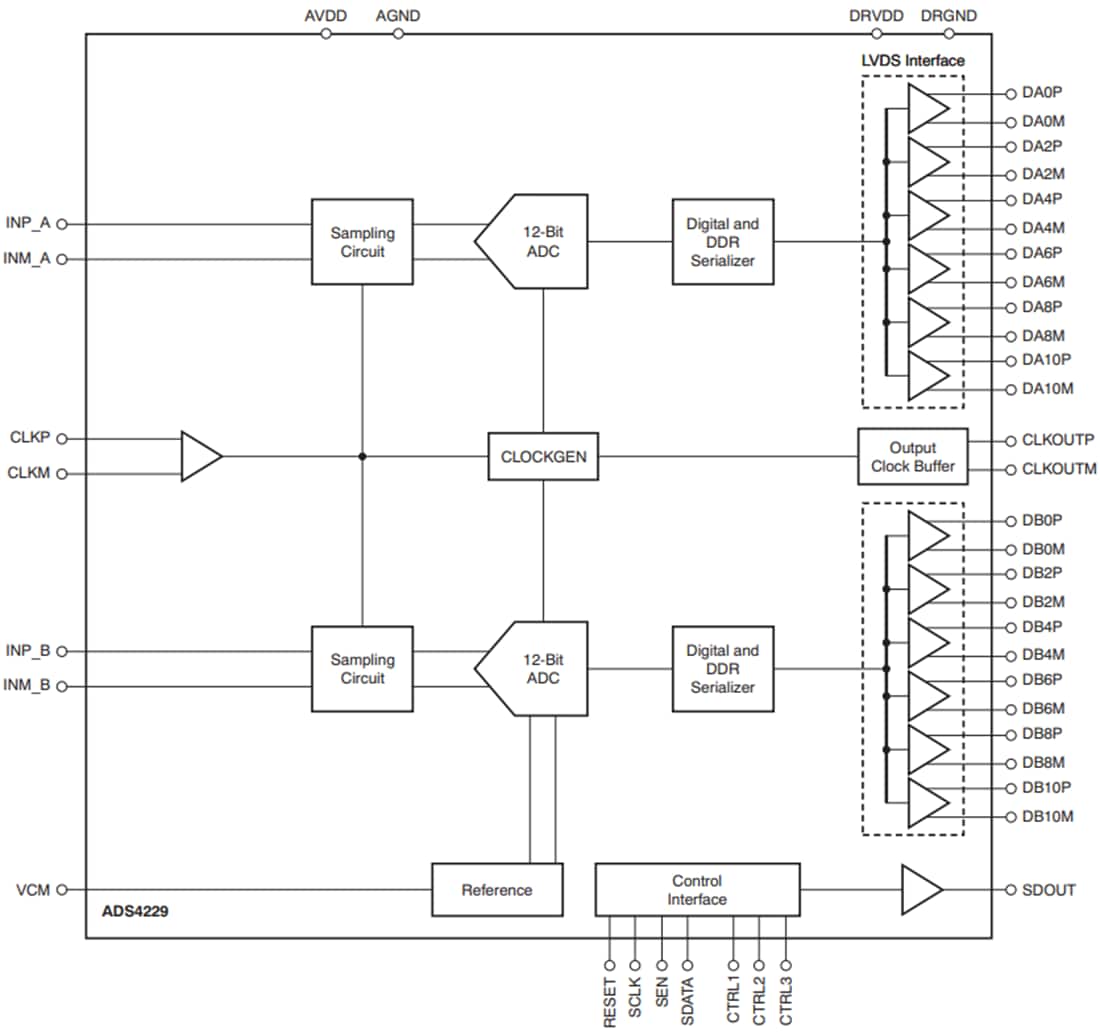

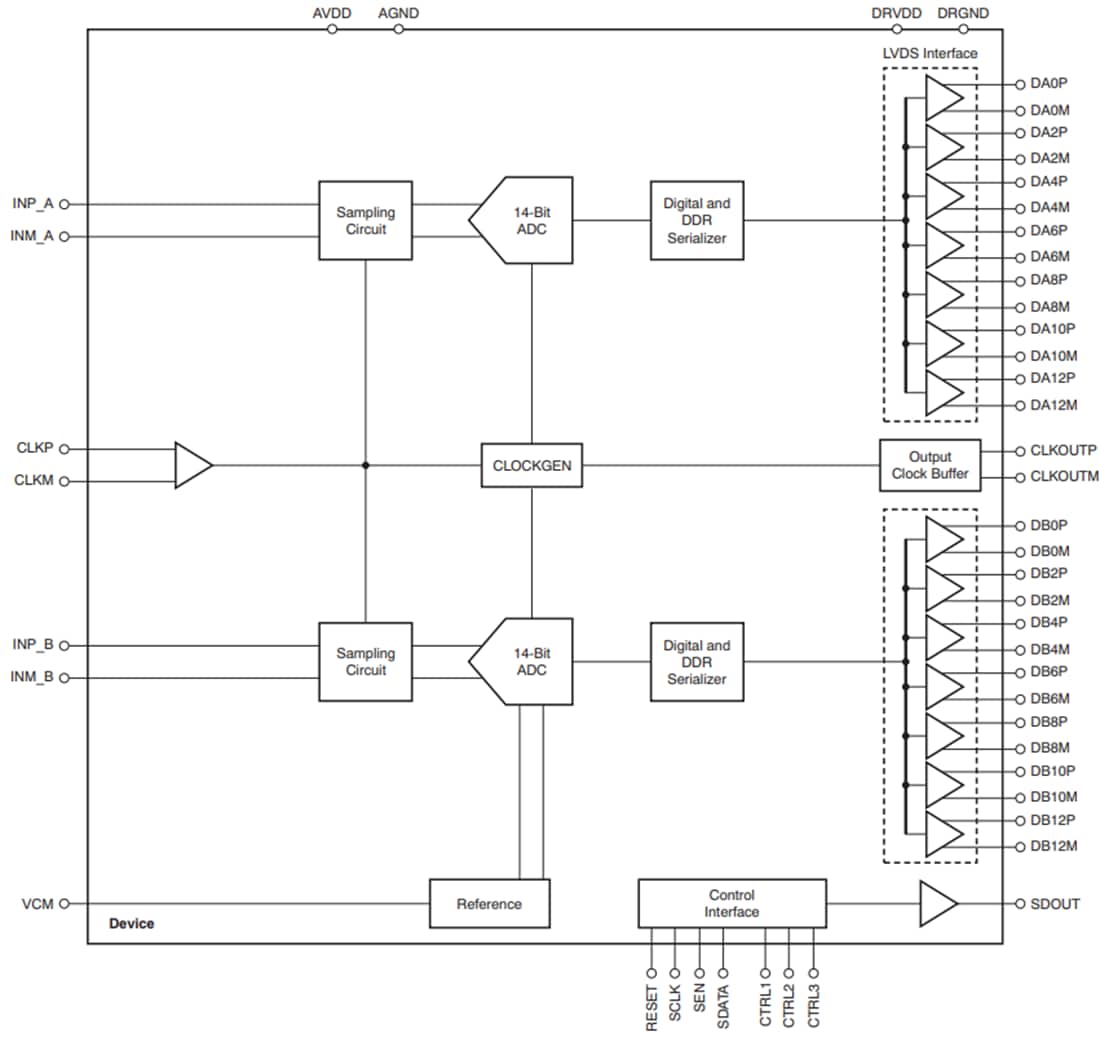

Functional Block Diagrams
Design Resources
Associated Development Tools
Texas Instruments ADS42xxEVM Evaluation Modules (EVM)
Evaluates the performance of the ADS42xx device, a dual channel 12-bit analog to digital converter.
Texas Instruments DAC31x2EVM Evaluation Modules (EVMs)
Evaluates the performance of the dual-channel 10-bit or 12-bit digital-to-analog converter (DAC).
Texas Instruments TSW1265 Dual Receiver Reference Design
Platform is ideally suited for use as a feedback receiver for transmitter digital predistortion.
