Toshiba DCL52x High-Speed Dual Channel Digital Isolators

Toshiba DCL52x High-Speed Dual-Channel Digital Isolators are based on Toshiba's complementary metal-oxide semiconductor (CMOS) technology. A highly reinforced insulation is achieved by this technology and the magnetic coupling structure. These data channels are available in various configurations with a withstand voltage of 3000VRMS. The Toshiba DCL52x High-Speed Dual Channel Digital Isolators operate within a temperature range of -40°C to +125°C and feature a wide supply voltage range of 2.25V to 5.5V.

Features

  • Up to 150Mbps data rate
  • 2.25V to 5.5V supply voltage range
  • -40°C to +125°C temperature range
  • 10.9ns (typ.) propagation delay (5.0V operation)
  • High and low options for default output
  • 100kV/μs high CMTI (typ.)
  • 3.0kVRMS withstand voltage
  • SOIC-8-N package
  • Safety-related certification
    • UL: UL1577, File No. E519997
    • cUL: CSA component acceptance service notice No. 5A, File No. E519997
    • VDE: DIN EN IEC 60747-17 (VDE V 0884-17) (Planning)

Applications

  • Industrial automation systems
  • Motor control
  • Inverters
  • Switching power supplies

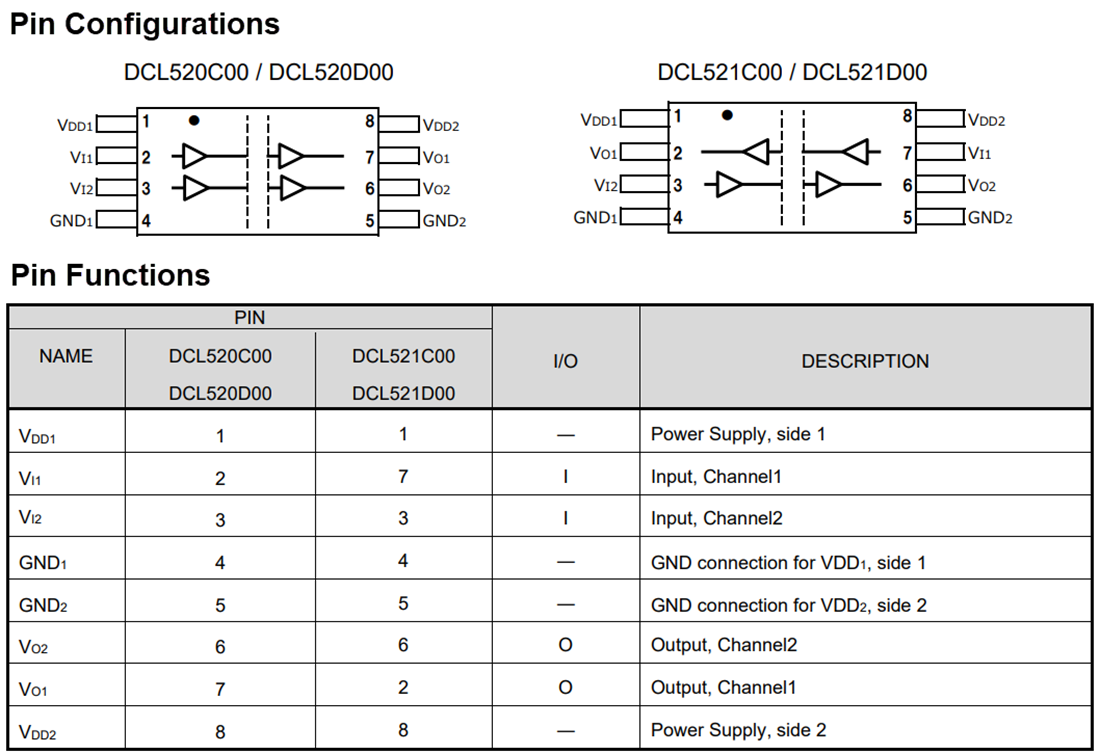

Chart - Toshiba DCL52x High-Speed Dual Channel Digital Isolators
