NXP Semiconductors S32M2 Integrated Solution for 12V Motor Control integrates high-voltage analog functionalities with a robust embedded MCU core. The NXP Semiconductors S32M2 ensures high-performance and functional safety compliance with ISO 26262 up to ASIL B. Key features include platform-based design of motor control edge nodes enabling faster time to market, advanced data analysis capabilities, inverter/motor diagnostic capabilities and advanced algorithms to minimize in-cabin noise. Through compatibility with the NXP S32 Automotive Platform, the S32M2 family enables seamless firmware over-the-air (FOTA) updates, software reuse, and flexibility. With attention to cost at the system level, S32M2 integrates voltage regulators, pulse-width modulators, analog-to-digital converters, timers, and non-volatile memory to reduce overall component count and reduce board space in a 64-pin LQFP-EP package.
Features

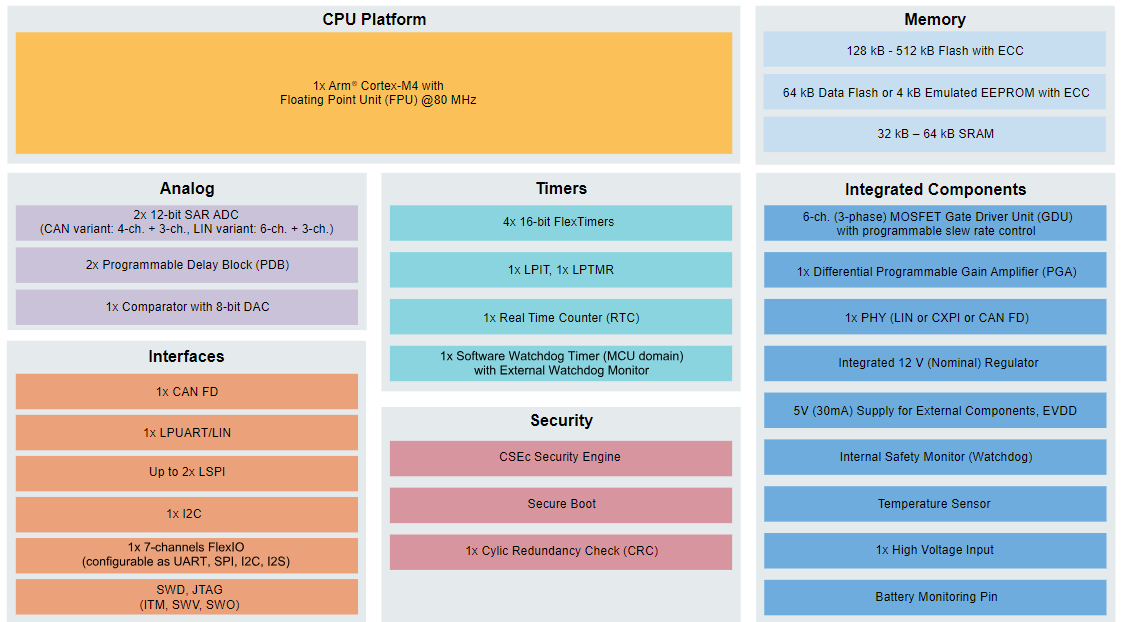

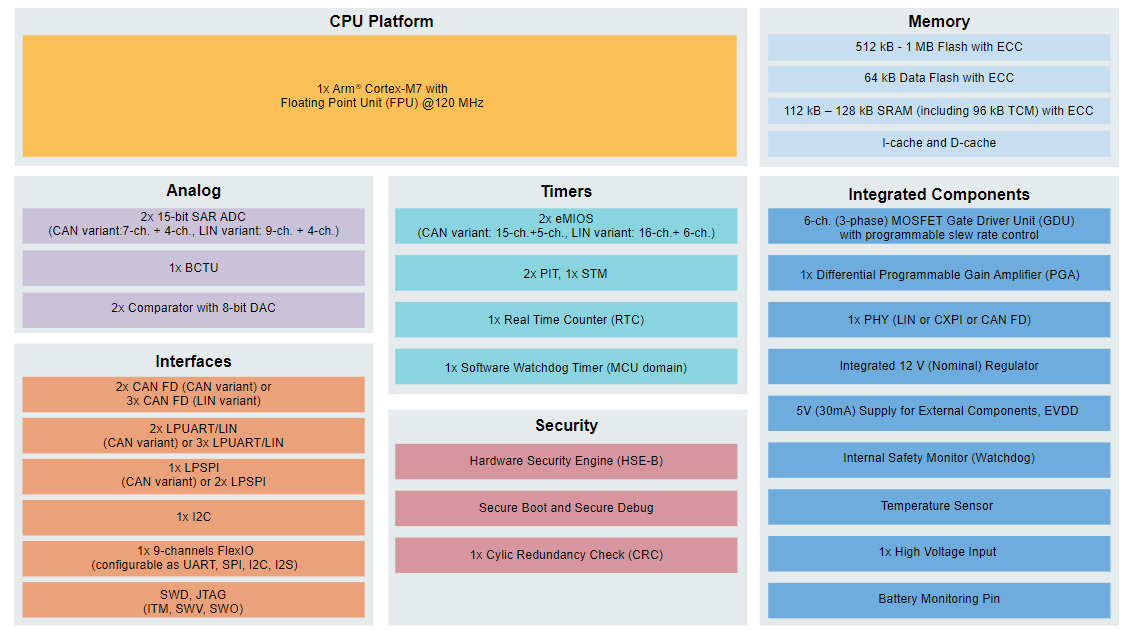

80MHz Arm® Cortex®-M4 core or 120MHz Arm Cortex-M7 core with single-precision floating point unit
Integrated physical interface for CAN FD or LIN
Integrated voltage regulator for operation from 12V car battery
Integrated voltage regulator for operation from car battery
Targeting ISO 26262 applications up to ASIL B
Hardware security CSE or HSE-compliant
Safety documentation and SafeAssure community support
Integrated 3-phase MOSFET gate driver for driving BLDC or PMSM motors with programmable slew-rate control
Integrated current sense measurement for single-shunt solution
Motor control software examples, including model-based design approach
Extended flash memory for AUTOSAR®, OS, diagnostics, bootloader, and over-the-air updates
Real-time drivers (RTD) for AUTOSAR and non-AUTOSAR OS
